Advanced Agent Memories

Advanced Agent Memories (the MemoryGrid stack) gives agents long-term memory and a way to learn from it. Agents can:

  • remember what happened, what is true, how to do things, what they learned, and what worked;
  • mine lessons from that experience on a schedule;
  • have humans review those lessons before they are trusted;
  • apply the trusted lessons when solving new tasks; and
  • track whether applied lessons actually helped, retiring the ones that keep failing.

This section documents the agent-memories codebase, which contains four Python packages and the Kubernetes manifests for their databases.

Components

Component Package / service What it does Docs
Agentic Memory agentic_memory (library) Six memory types — episodic, semantic, procedural, reflective, reward and session context — stored across PostgreSQL, Weaviate, ArangoDB and Redis behind one AgentMemory façade Agentic Memory
Agent FS agent_fs (library) A git-backed, version-controlled file system per agent: read/write files, commit, branch, tag, diff, restore, revert, stash Agent FS
Learner memorygrid_learner (FastAPI service) Mines lessons from agent experience, accepts injected lessons, enriches them, runs human review, and promotes approved lessons into a Skills store or Knowledge Base (git-versioned) Learner
Incorporator & Feedback memorygrid_incorporator (FastAPI service) At task time, matches the current problem to a promoted lesson, turns it into a concrete action, records feedback, and escalates lessons that keep failing Incorporator & Feedback

Memory types at a glance

Type Question answered Store Docs
Episodic What happened? mem.episodic Episodic
Semantic What is true? mem.semantic Semantic
Procedural How do I do this? mem.procedural Procedural
Reflective What did I learn? mem.reflective Reflective
Reward What works best? mem.reward Reward
Context KV What is my current session state? mem.context_kv Context KV

Architecture

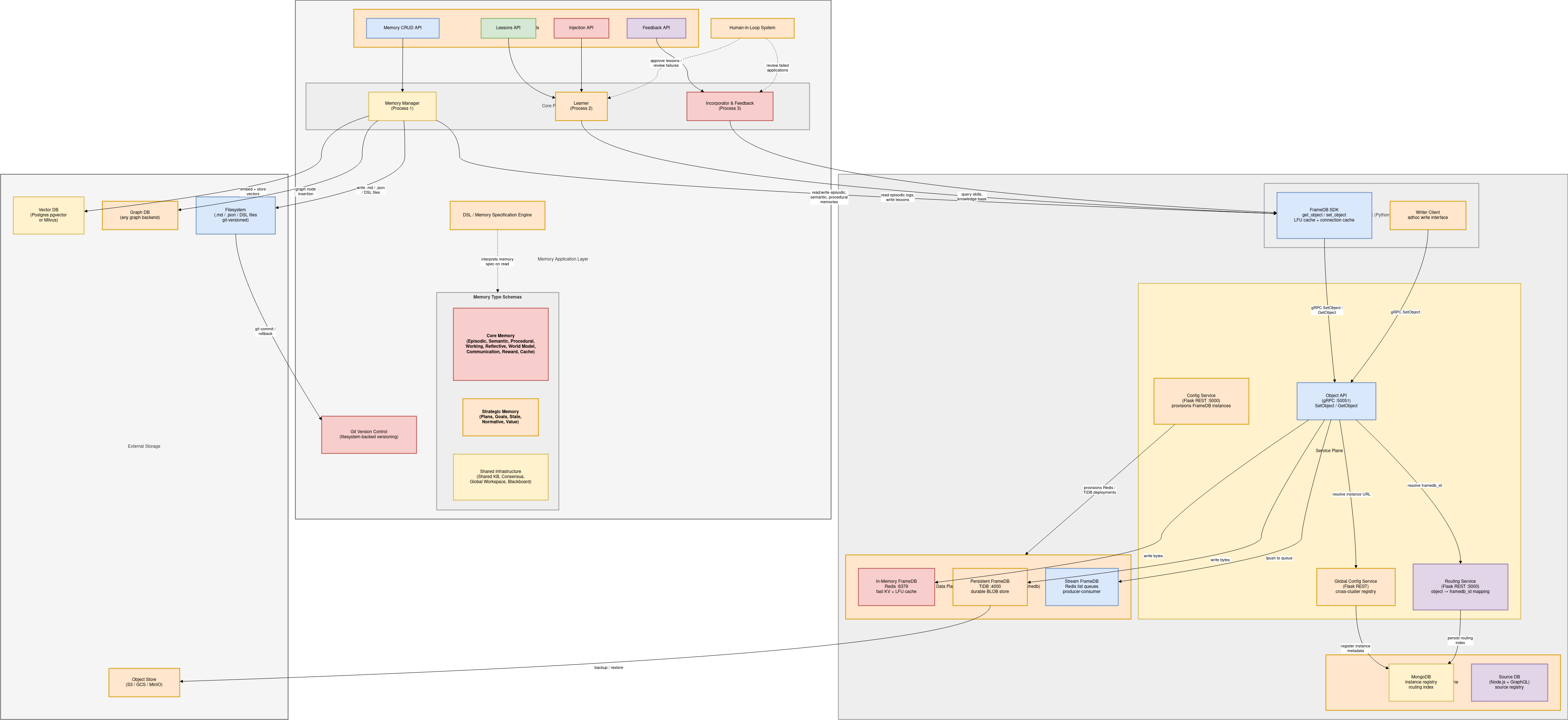

MemoryGrid overall architecture

Download Image

The design has three core processes on top of the storage layer:

  1. Memory Manager (Process 1) — turns raw input into memory documents and places them in a knowledge graph.
  2. Learner (Process 2) — mines lessons from experience and graduates them through human review.
  3. Incorporator & Feedback (Process 3) — applies lessons at task time and feeds results back.

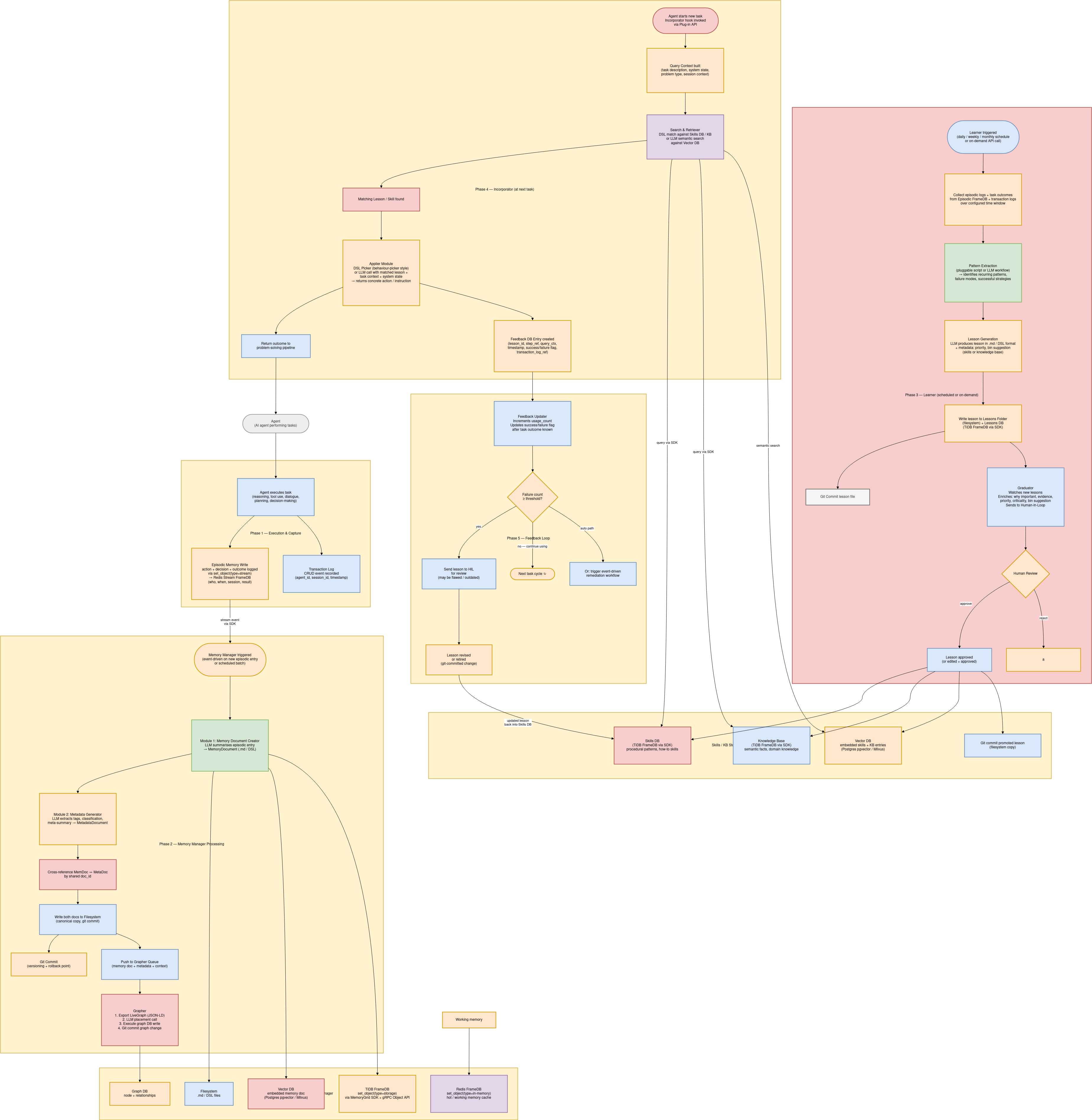

Memory lifecycle

Memory lifecycle

Download Image

  1. Execution & capture — the agent executes a task and records episodes (Agentic Memory).
  2. Memory processing — memories are summarized, tagged and placed in a graph (Memory Manager — design only).
  3. Learning — the Learner collects experience, extracts patterns, writes a lesson, enriches it, and sends it to human review. Approved lessons are promoted to the Skills DB or the Knowledge Base.
  4. Incorporation — at the next task, the Incorporator matches the task to a promoted lesson and returns a concrete action.
  5. Feedback loop — the outcome is recorded. A lesson that fails too often is sent back to human review and/or disabled.

Implementation status

The diagrams describe the complete target design. What the code implements today:

Design element Status
Memory types (episodic, semantic, procedural, reflective, reward, context cache) Implemented — agentic_memory
Git-versioned filesystem Implemented — agent_fs, plus the Learner's own lessons repository
Learner Process: trigger, data collection, pattern extraction, lesson creation, watcher, enrichment, human review, promotion, cross-agent sharing, metrics Implemented — memorygrid_learner
Incorporator: plug-in API, DSL/LLM matching, DSL/LLM applier, feedback DB, threshold escalation (human/auto paths), metrics Implemented — memorygrid_incorporator

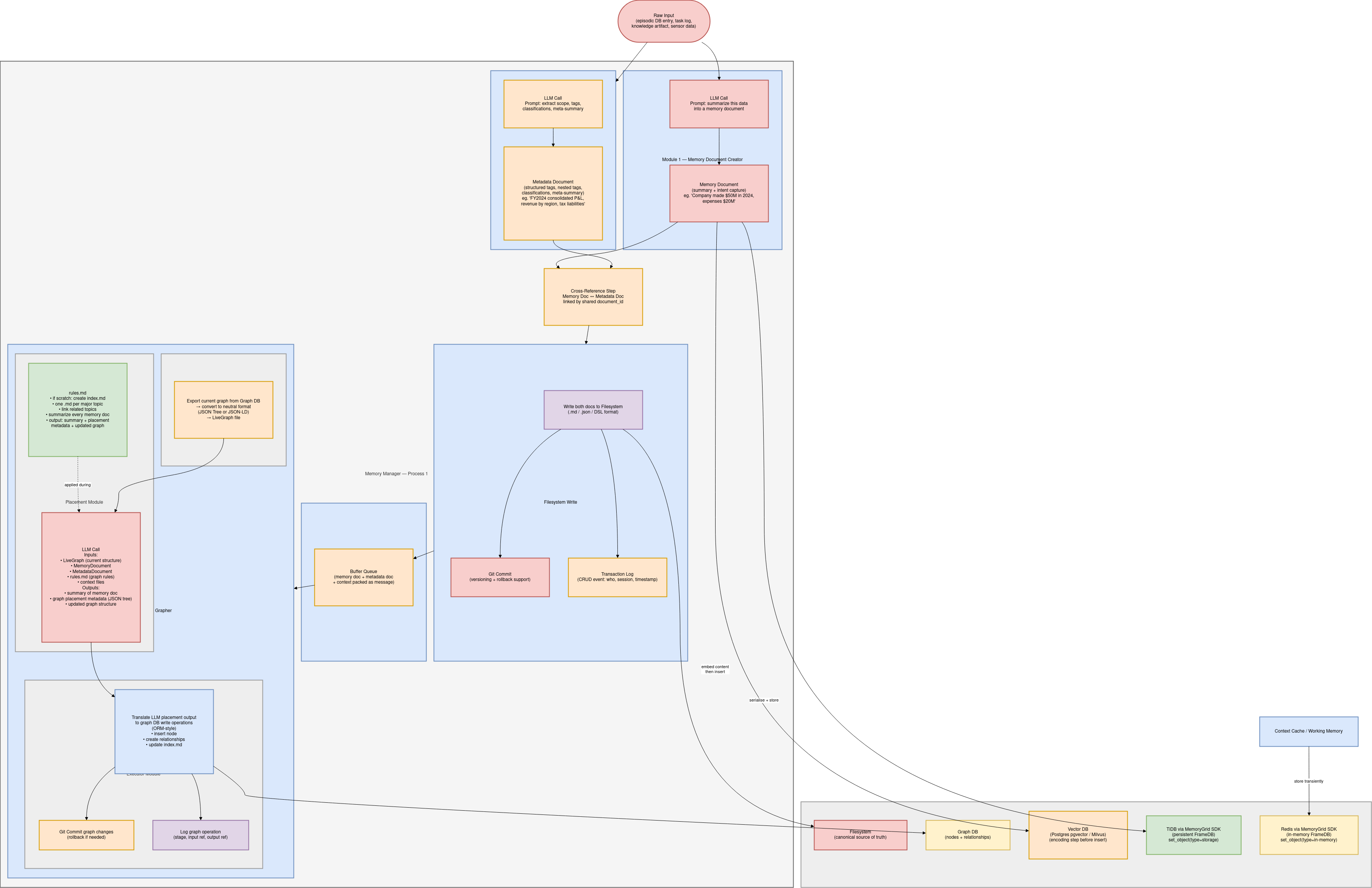

Memory Manager (memory document creator, metadata generator, grapher) Design only (diagram)
Team/org-level memory scopes, CRDT concurrent-write layer, shared workspace/blackboard/consensus (diagram) Design only
FrameDB SDK (Redis/TiDB FrameDB via gRPC) Not used by this code. The Learner talks to TiDB (or SQLite) directly through SQLAlchemy
Working memory, world model, strategic memory types Design only

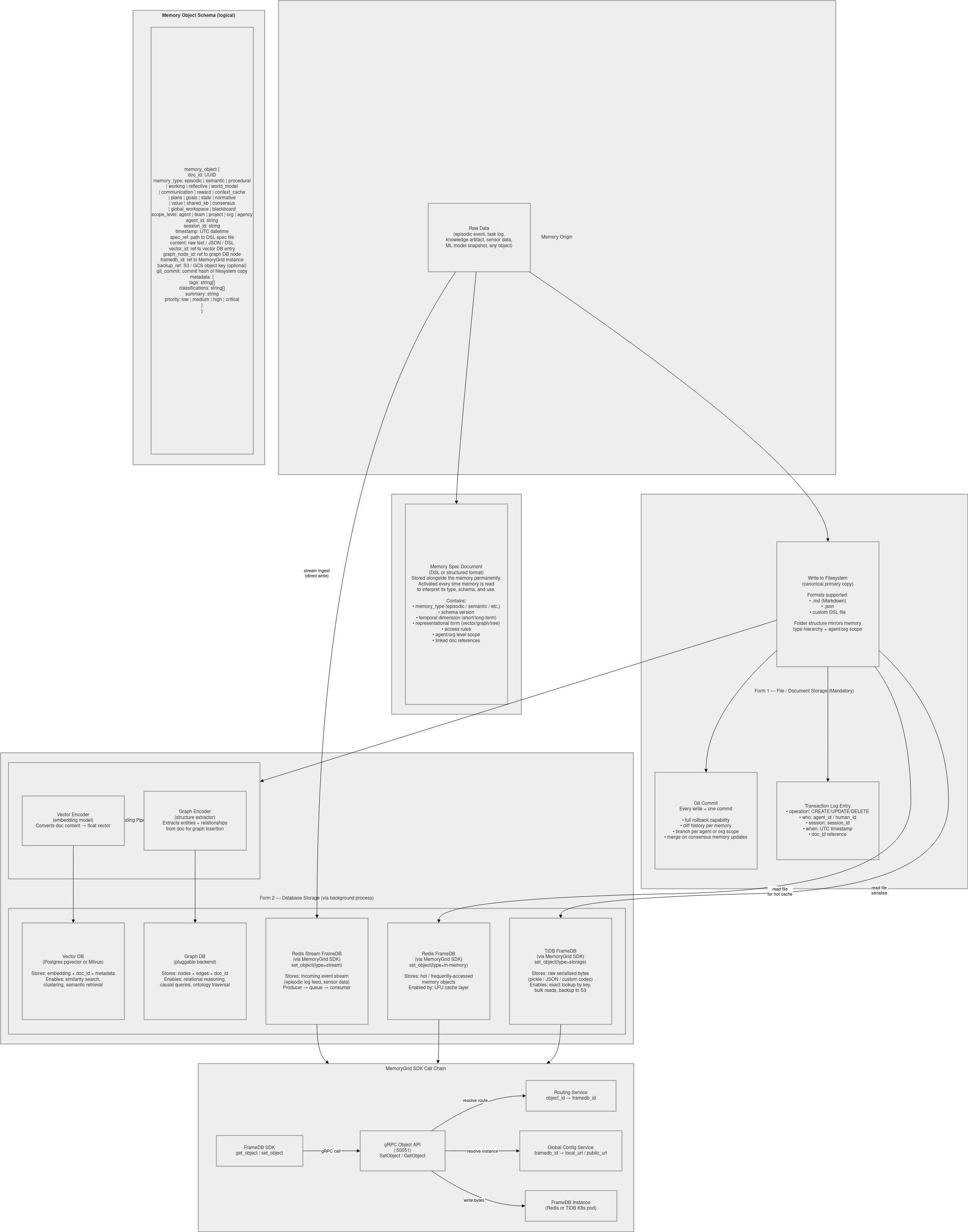

Other diagrams: Memory storage · Learner process · Feedback.

How the pieces connect

                         ┌──────────────────────────── agent runtime ───────────────────────────┐
                         │                                                                       │
  task ─► Incorporator /invoke ──► action ──► agent executes ──► Incorporator /outcome           │
                │                                   │                     │                      │
                │ match against                     │ remember_episode()   │ failures ≥ X         │
                ▼                                   ▼                     ▼                      │
     Skills DB / Knowledge Base ◄── promote ── Learner ◄── collect ── Agentic Memory     re-review / disable
     (TiDB + vector + git)             ▲                                                         │
                                       └── human review (approve / edit / reject) ◄──────────────┘
  • The Learner and the Incorporator share the same Skills/Knowledge Base storage. The Incorporator imports the Learner package and builds its storage objects from the same settings.
  • Agentic Memory is the long-term memory library the agent uses directly. The Learner's data collection currently uses in-process demo sources. See Learner → Feeding experience into the Learner for how to connect them.

Getting Started

  1. Deploy the databases for Agentic Memory: Deployment.

  2. Give your agent memory:

    ```python from agentic_memory import AgentMemory, MemoryConfig from agentic_memory.models import Outcome

    with AgentMemory(MemoryConfig()) as mem: ep = mem.remember_episode("Retried the upload with backoff and it succeeded", session_id="s1", agent_id="uploader", outcome=Outcome.SUCCESS) mem.reflect("Backoff fixes transient upload errors", lesson="Retry uploads with exponential backoff", source_episode_id=ep.id) print(mem.recall("upload failures")) ```

  3. Run the Learner and the Incorporator services, and connect your agent pipeline to them: End-to-End Example.
